Stock Code
0632 3801
TESTO Particulate Matter Measurement System | TESTO 380
With the testo 380 particulate matter measurement system, you can carry out uncomplicated particulate matter measurements directly on site. The completely new method of measurement developed by Testo enables the particulate matter to be monitored and limit values to be enforced. The measurement system is your professional tool for solid fuel, oil and gas systems.
Your Advantages
- The system comprises testo 380 particulate matter measuring instrument and testo 330-2 LL flue gas analyzer
- Complete solution for solid fuel, oil and gas systems
- Fully TÜV-tested for limit value levels 1/2 and according to VDI 4206 Sheet 2
- Particulate matter measurement, simultaneous O2 and CO measurement
TESTO Particulate Matter Measurement System | TESTO 380 Description
testo 380 particulate matter measurement system – complete solution for solid fuel, oil and gas systems
Advantages of the testo 380 particulate matter measurement system for particulate matter measurement
Delivery Scope
TESTO Particulate Matter Measurement System | TESTO 380 Technical Data
General technical data
TESTO Particulate Matter Measurement System | TESTO 380 Images
The constantly rising number of solid fuel systems is leading to a further increase in the emission of particulate matter. The revised version of the 1st German Federal Immission Control Ordinance (BImSchV) presents new challenges for flue gas inspectors, heating engineers and service engineers when it comes to particulate matter measurement.
testo 380 particulate matter measurement system – complete solution for solid fuel, oil and gas systems
The testo 380 particulate matter measurement system comprises two system components: the testo 380 particulate matter measuring instrument including particulate matter probe and the testo 330-2 LL as a control centre and flue gas analyzer. This complete system is extremely compact, easy to use and ensures accurate measurements on solid fuel, oil and gas systems.
Advantages of the testo 380 particulate matter measurement system for particulate matter measurement
- Suitability permit received for fuels 1-8, levels 1 and 2
- Measurement system comprising testo 380 particulate matter measuring instrument and testo 330 LL flue gas analyzer
- The testo 380 particulate matter measuring instrument allows you to carry out effortless and straightforward measurements directly on site
- testo 330 LL flue gas analyzer: System control centre and flue gas analyzer
- Parallel measurement of particle matter, O2 and CO in real time
- Charts used to show all required measuring values for an optimum overview
- Particularly cost-effective operation and maintenance
- Effortless handling and easy transportation
- Fully TÜV-tested for limit value levels 1 and 2 and according to VDI 4206 Sheet 2
- High-tech in a portable case: measurement of all relevant values with just one probe
Delivery Scope

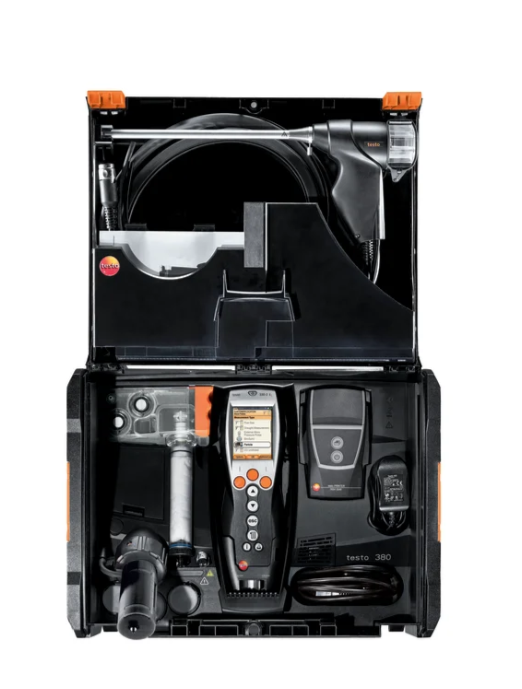

testo 380 particulate matter measurement system incl. testo 380 particulate matter measuring instrument with particulate matter probe and cleaning set, testo 330-2 LL flue gas analyzer with mains unit (incl. Bluetooth, H2-compensated CO cell), modular flue gas probe (length 300 mm, Ø 8 mm), combustion air temperature probe (length 190 mm).
TESTO Particulate Matter Measurement System | TESTO 380 Technical Data
| Weight |
7900 g
|
|---|---|
| Measuring range |
0 to 300 mg/m³
|
| Accuracy |
acc. VDI 4206-2
|
| Resolution |
0.1 mg/m³ (>5mg/m³)
|
| Dimensions |
475 x 360 x 190 mm
|
| Operating temperature |
+5 to +40 °C
|
| Product-/housing material |
ABS
|
| Protection class |
IP40
|
| Display type |
LCD (Liquid Crystal Display)
|
| Display function |
shows warm-up phase and operational readiness
|
| Power supply |
via internal mains unit: 100 V AC/0.45 A to 240 V AC/0.2 A (50 to 60 Hz)
|
| Maximum memory |
500.000 readings
|
| Storage temperature |
-20 to +50 °C
|
TESTO Particulate Matter Measurement System | TESTO 380 Images
